Additional information
| Weight | 36.4 kg |
|---|---|
| Dimensions | 39.5 × 27.8 × 700 cm |
| Watts | 24kw, 30kw, 35kw |
| Flue Options | Boiler Only – NO Flue, Ideal Horizontal Flue 100mm (208171), Ideal Vertical Flue (211039) |

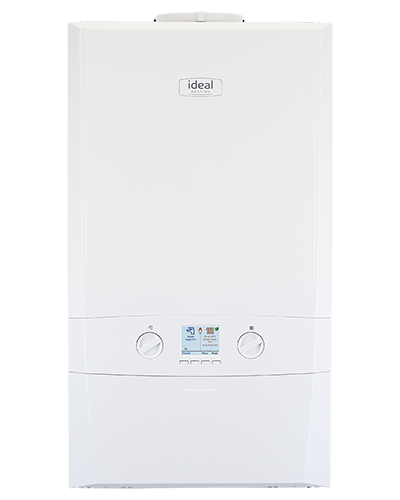

Ideal Logic Max C30 Combi2 Boiler
From £1,440.00
The Logic MAX Combi2 is a combination boiler providing both central heating and instantaneous domestic hot water.
Featuring full sequence automatic ignition and fan assisted combustion.
Features & Benefits
- 10 year warranty*
- Large high resolution colour screen
- Compatible with the Halo smart programmable room thermostat range
- Compact cupboard fit for a discrete install
- Comes with an Ideal System Filter to maintain and protect your heating system
- Sleek modern design
- Quick and easy to install and service
- Compatible with green heating technologies including solar thermal and hybrid systems
Specifications
TECHNICAL SPECIFICATION
Available in three different outputs of 24kW, 30kW & 35kW.
| LOGIC MAX COMBI MODELS | 24 | 30 | 35 |
|---|---|---|---|
| Weight (Packaged) kg | 32.8 | 33 | 33 |
| Max Installation weight kg | 28.5 | 28.6 | 28.6 |
| CH Output(kW) min/max mean 70ºC | 4.8-24.2 | 6.1-24.2 | 7.1-24.2 |
| CH Output(kW) min/max mean 40ºC | 5.1-25.6 | 6.4-25.6 | 7.5-25.6 |
| DHW output (kW) max | 24.2 | 30.3 | 35.3 |
| DHW flow rate l/min 35ºC | 9.9 | 12.4 | 14.5 |
| SEDBUK rating (2005)% | 91.1 | 91.1 | 91.1 |
| SEDBUK rating (2009/2012)% | 89.6 | 89.6 | 89.6 |
| NOx Classification | Class 6 | Class 6 | Class 6 |
| LPG conversion | Yes | Yes | Yes |
| Max Horizontal flue | 9m | 8m | 6m |
| Max Vertical Flue | 7.7m | 7.5m | 7.5m |
| Seasonal space heating efficiency class | A | A | A |
| Seasonal space heating energy efficiency µs % | 94 | 94 | 94 |
| Sound power level indoors LWA dB(A) | 50 | 46 | 46 |
| Water heating energy efficiency class | A | A | A |
